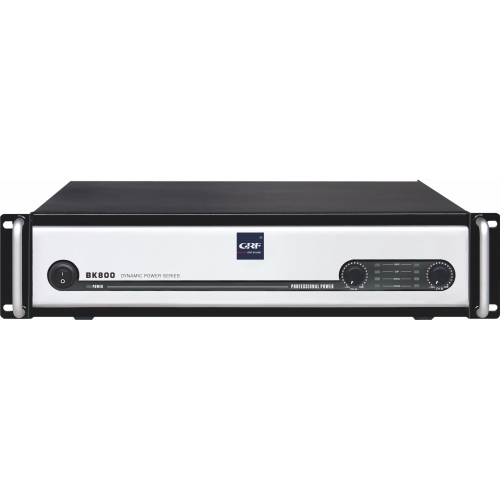

BK series power amplifier power output vary from 400W to 1200W, six models, from Class AB to Class H design.
Features:
1.6 different power outputs to meet different venues.
2. Intellegent heat releasing design ensures working more quietly.
3. Equipped with both XLR and TRS(6.35mm).
4. STEREO, BRIDGED or PARALLEL output modes.
5. With Signal led, Peak led Protect led and Power led.
6. Protection circuit design, overload/short-circuit/DC protection, temperature control system and peak limit.
7.2U height design.
8. Class H design.
9. Soft-start function.
10. AC power input 110V~120V/50Hz or 220V~240V/60Hz.
Stereo power 8Ω: 800W*2
Stereo power 4Ω: 1200W*2
Stereo power 2Ω: 1400W
Signal-to-noise ratio: 103dB
Damping factor: 500:1
Frequency response: +/-0.1db, 20Hz+20KHz
Total harmonic distortion: ≦0.01% Rated power@8 ohms 1kHz
Intermodulation distortion: ≦0.01% Rated power@8 ohms;
Input sensitivity: 0.775V, 1.0V, 1.55V
Low pass: 20Hz-180Hz Valid
High pass: 130Hz-20KHzValid
Input impedance: 10K/20K ohous, unbalanced or balanced;
Common mode rejection ratio: ≦-75db;
Crosstalk attenuation: ≦-70db;
Indicator: Signal, protect, dctive, clip/limiting;
Power input/frequency: 220V 50/60Hz
FUSE: T20A;
Weight: 23KG
Dimensions (HWD): 145*603*560mm
